High-Efficiency Urban Environment Workflow

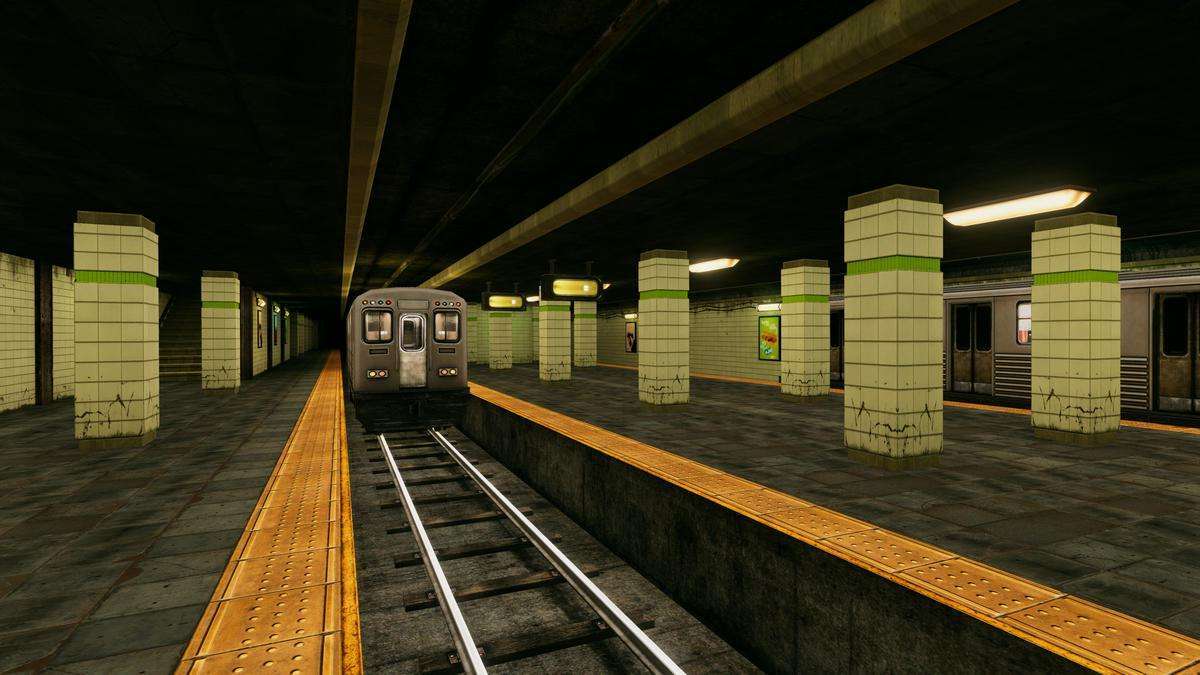

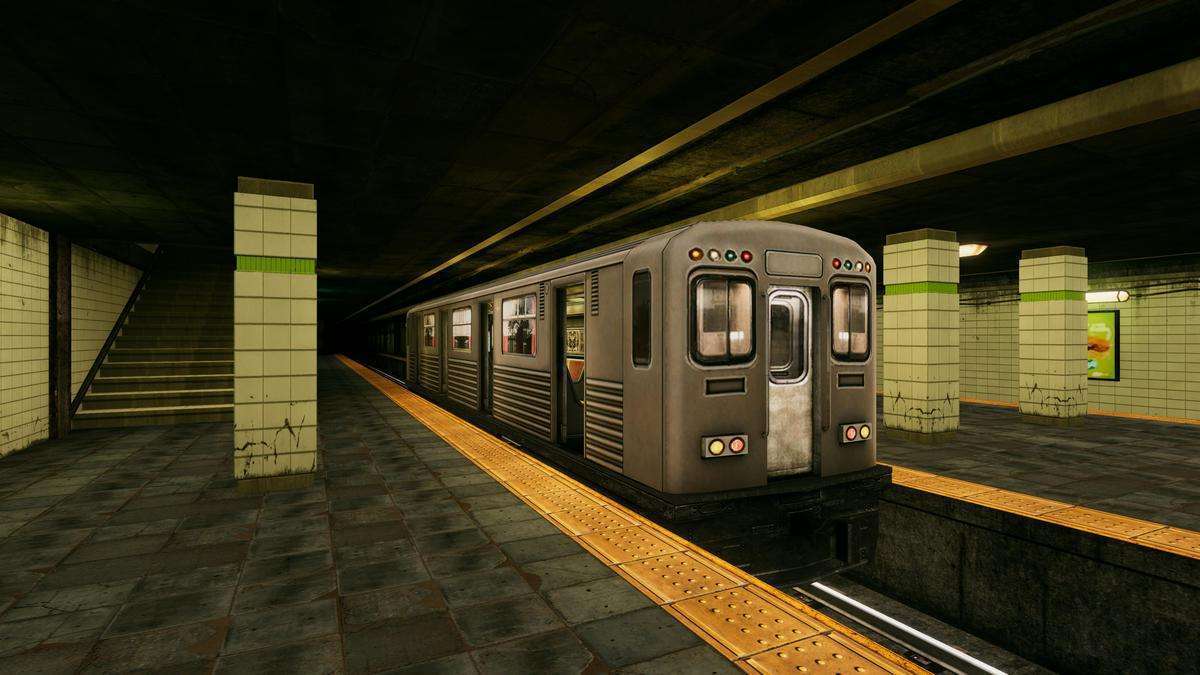

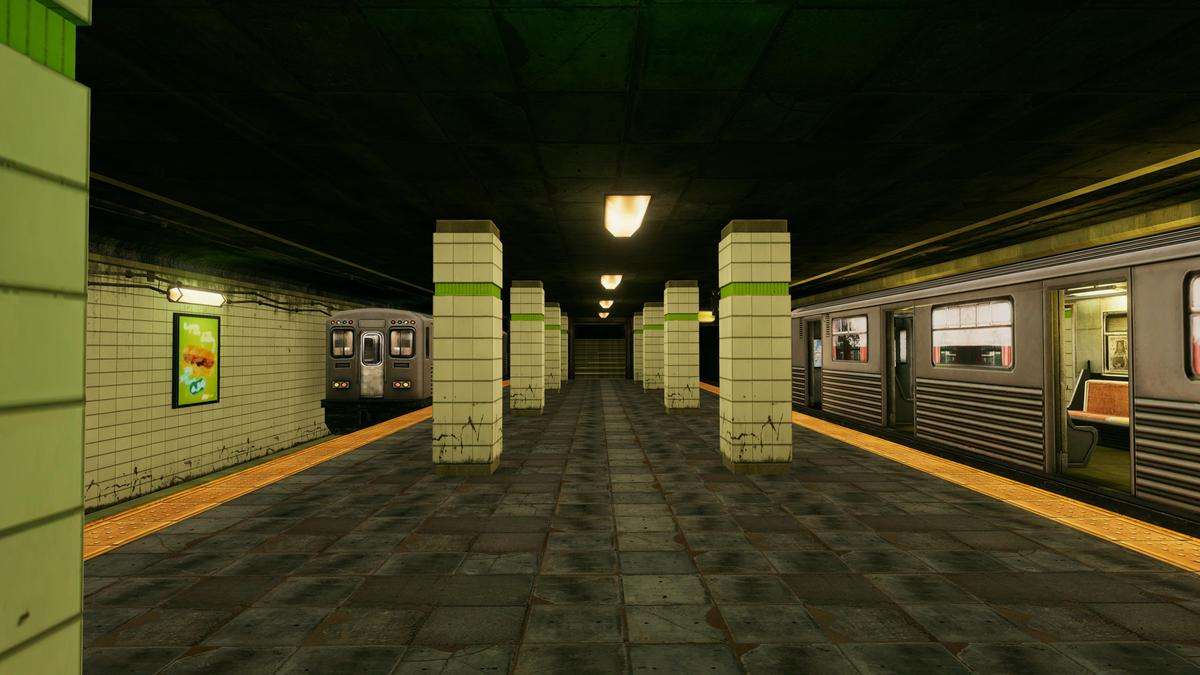

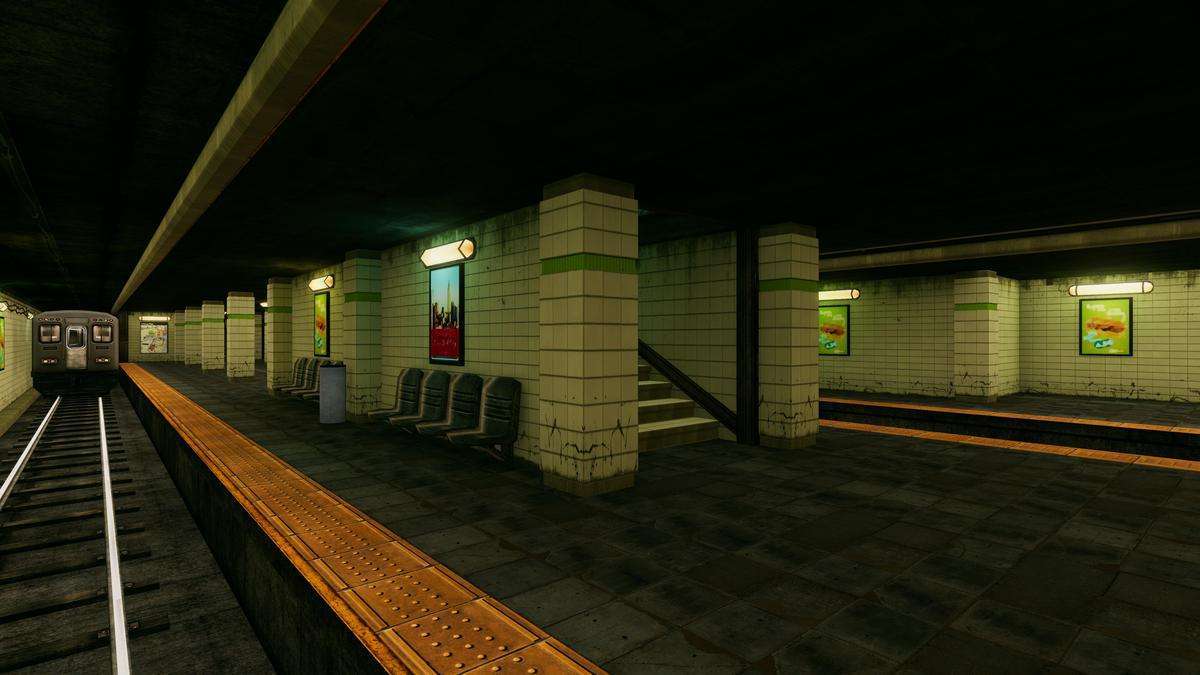

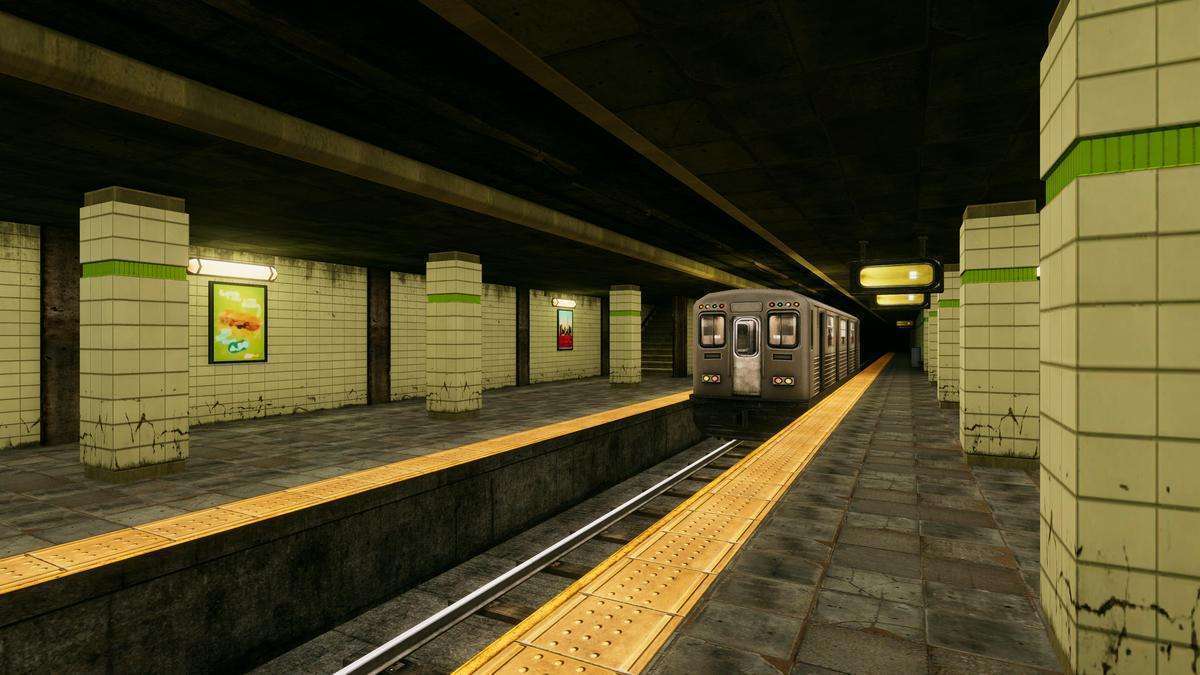

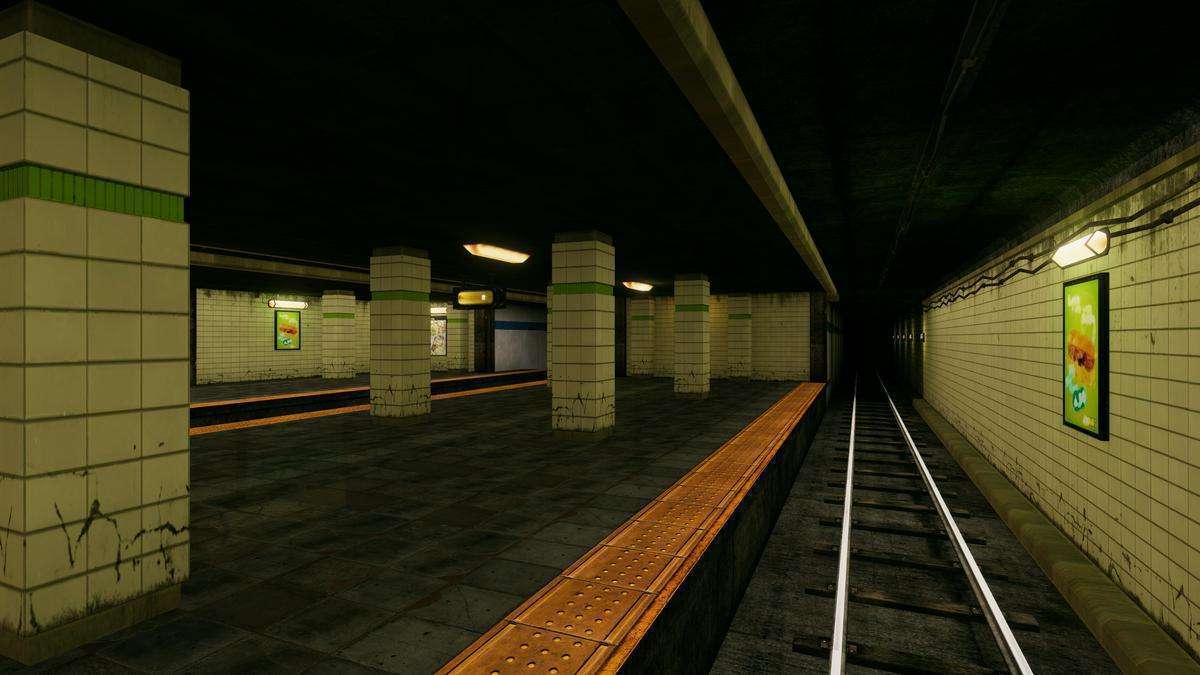

The Subway Metro Station Unity asset 1.0.0 is a masterclass in modular environment design for performance-constrained projects. When building out transit hubs, the biggest bottleneck is usually the draw call count from thousands of small props. This pack mitigates that by utilizing extremely low-poly geometry—with many structural elements like pillars and walls sitting under 10 tris—allowing for aggressive static batching and efficient use of the SRP Batcher in URP.
- Texture Management: The 1024/2048px textures are authored with clean/worn variants, making it easy to swap materials via script to denote different gameplay zones or state changes in the environment.
- Lighting Pipeline: Includes emissive maps for tube lights, which are essential for driving Realtime GI or for baking high-quality Lightmaps that define the atmosphere of underground scenes.
- Optimization: Optimized topology ensures that even in complex VR scenes, the vertex shader stage remains lightweight.
Integration Tips

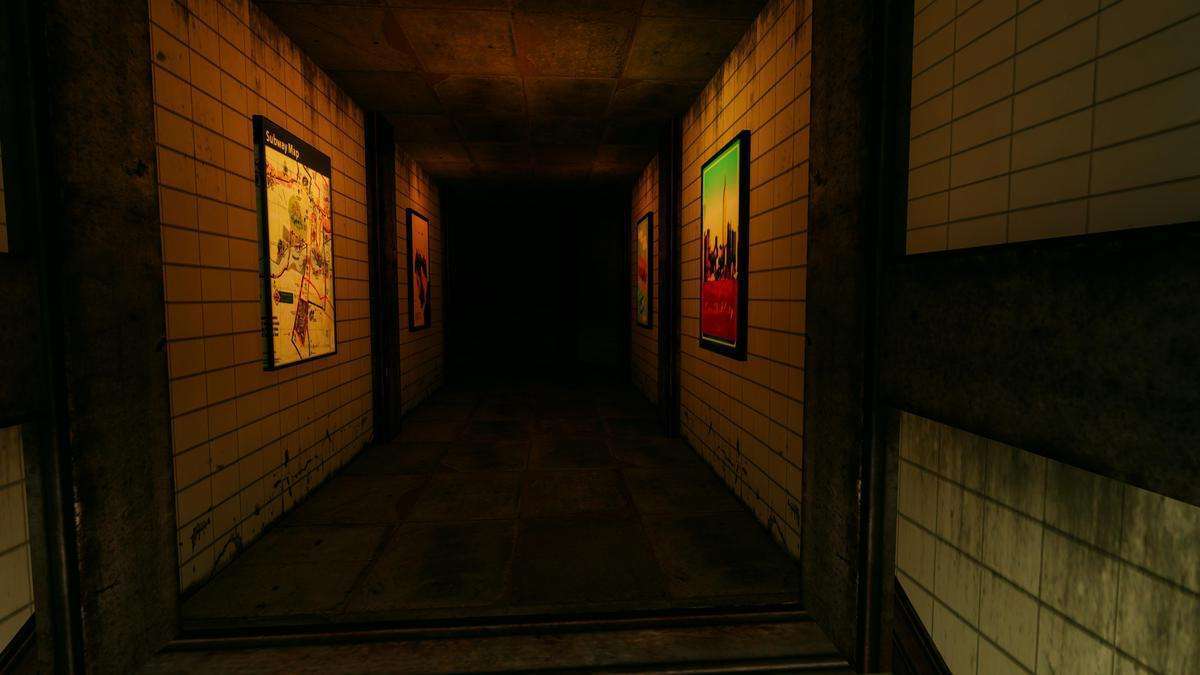

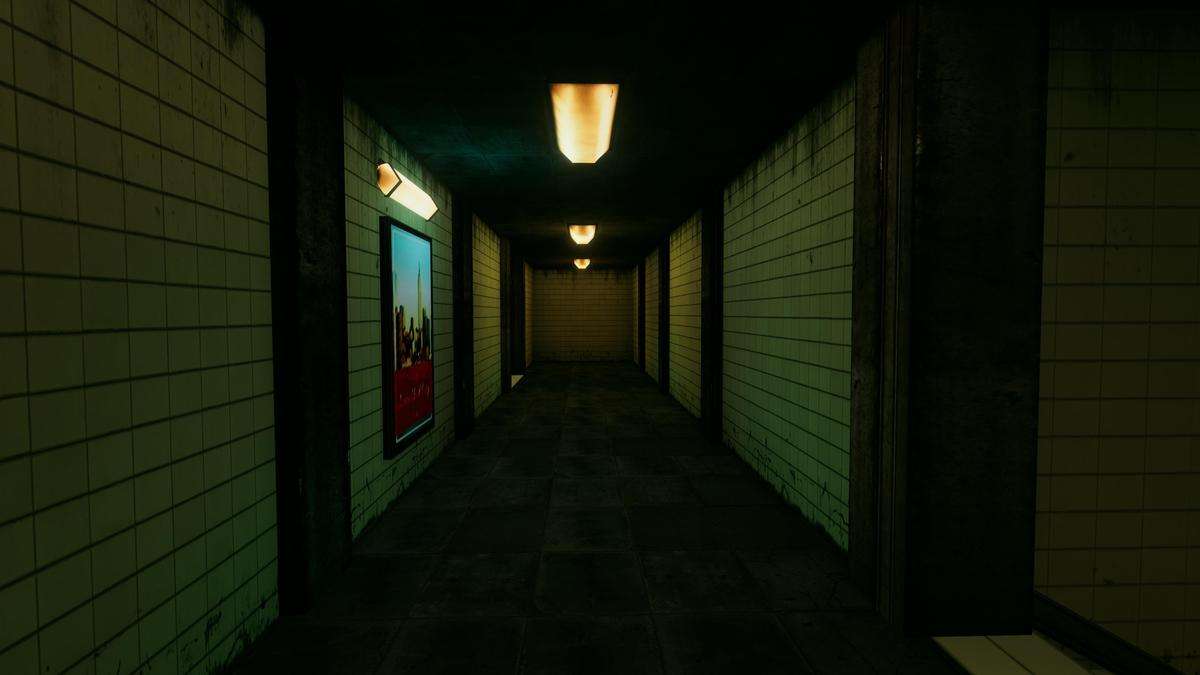

When dropping these prefabs into an existing project, immediately set up your ProGrids or Grid Snapping to 0.5m or 1m increments. Since the meshes are modular (especially the Tunnel and Platform Floor pieces), precise snapping is required to avoid T-junction artifacts or light leaks at the mesh seams. For mobile or Quest development, I recommend combining the 10 materials into a single texture atlas using a tool like Mesh Baker to further reduce draw calls. Finally, ensure you place a Light Probe Group spanning the length of the tunnel; because the geometry is tight, dynamic objects will need accurate probe data to match the baked environment lighting.
Best Use Cases
- Mobile Horror Titles: The claustrophobic tunnel geometry and pre-configured baked lighting setup provide the perfect foundation for a high-performance horror experience where frame rate stability is non-negotiable.
- ArchViz and Simulation: Due to the clean topology and inclusion of source files, this is an excellent choice for transit simulations or architectural walkthroughs where you need to modify the structural layout without fighting messy boolean geometry.
